AUTO_FLUSH_BOLT
AUTO_FLUSH_BOLT
AUTO_FLUSH_BOLT models lists
| Model / Types | Callout Part Number | Small door condition during main door in Open/Close | Remarks | |
|---|---|---|---|---|
| In Closing | In Opening | |||
| Fully automatic | AF1-15 | Top/Bottom locking | Top/Bottom releasing | |
| AF1-16 | Top/Bottom locking | Top/Bottom releasing | Door for Fire hose joint | |
| AF1-1 | Top lock | Top release | Smoke prevention door / Top only | |
| Semi-automatic | AF1-25 | Top/Bottom locking | Top lock/Bottom release | Push button release |
| AF1-26 | Top/Bottom locking | Top lock/Bottom release | Push button release/Door for Fire hose joint | |
| AF1-35 | Top/Bottom locking | Top lock/Bottom release | Push button release/Main door with peephole | |
| AF1-36 | Top/Bottom locking | Top lock/Bottom release | Push button release/Main door with peephole /Door for Fire hose joint | |
※ TOP only, Bottom only can be made

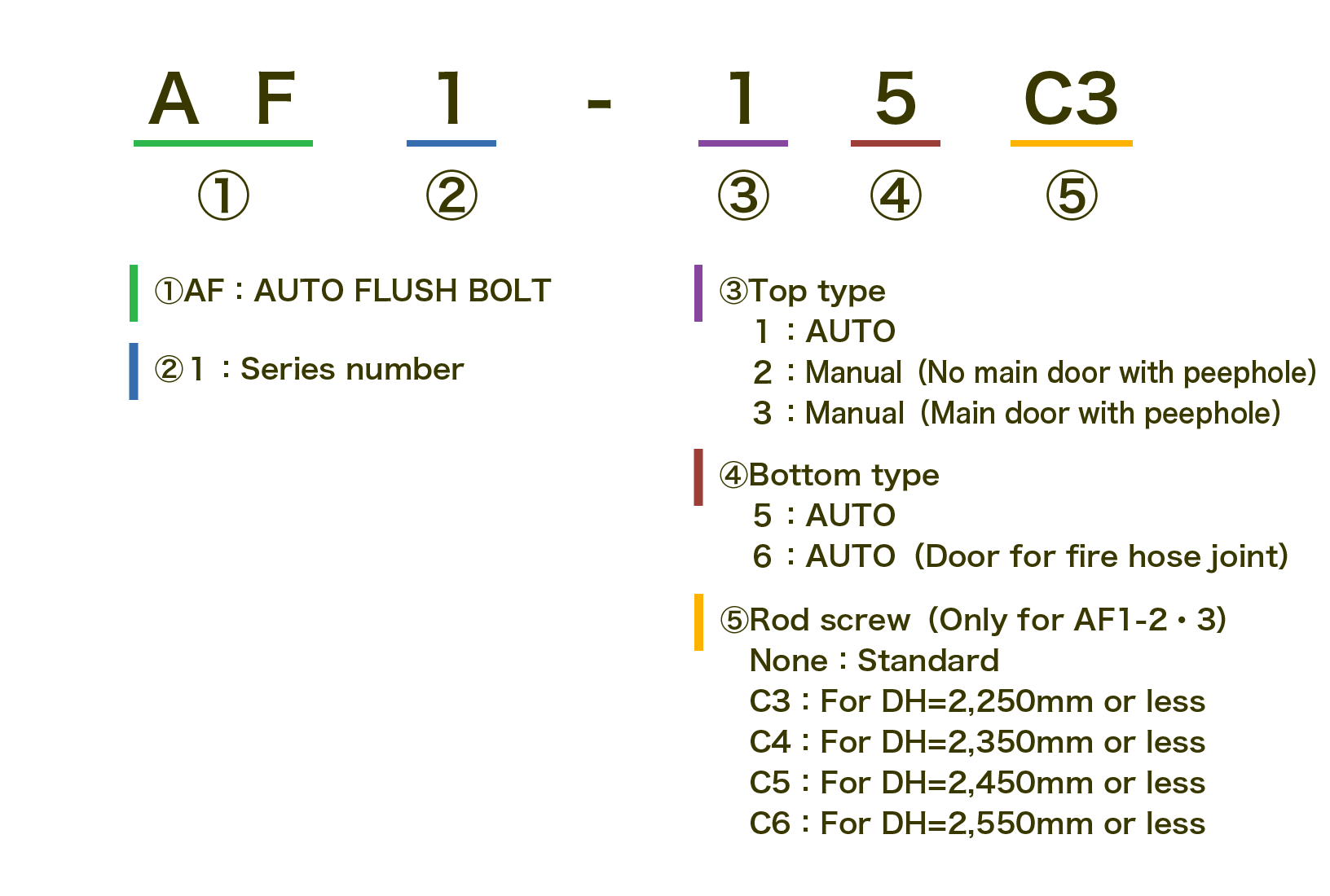

※ Based on the below table/list, please put subsequent part numbers to 「AF1-」
